Fuel Dispenser Filters for the Farm
Engineered to Protect Hard-Working Farm Equipment

Don’t miss critical planting and harvesting timelines by leaving the quality of your fuel up to chance.

PetroClear engineers dispenser filters with advanced technology that capture dangerous contaminants in fuel, such as particulate and water, to prevent the high cost of engine damage and equipment failure.

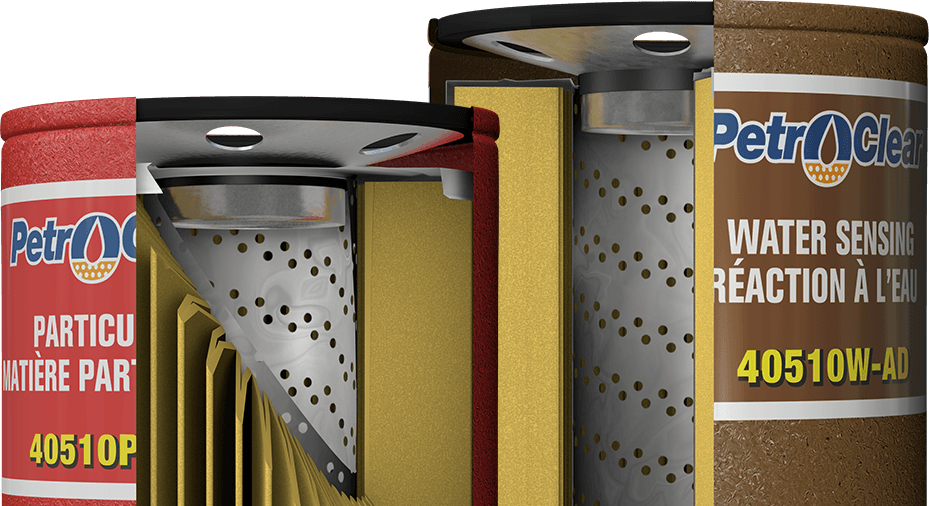

How Do PetroClear Filters Prevent Agricultural Equipment Breakdowns?

Our product line includes filters with super-absorbent synthetic media to capture dirt, dust and rust that can contaminate clean fuel as it passes through numerous tankers, trucks and vessels. We also offer select filters with durable, silicone-treated media to repel water, which can accumulate as fuel sits inside storage tanks and potentially wreak havoc on combustion engines.


Farm Life Demands Clean Fuel
Click on a filter for more details

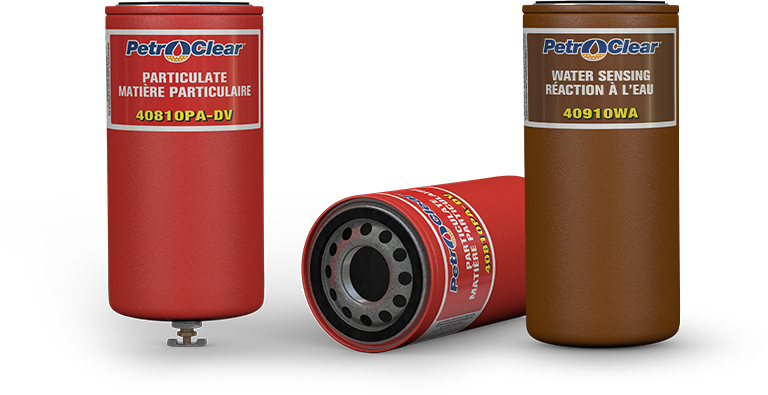

Particulate Removing Filters
Extended Life Water Sensing and Particulate Removing Filters
*Extended Life* Water Sensing and Particulate Removing Filters
40910WA
40930WA
Filter Type
Spin-On
Spin-On
Media Type
*Cellulose with Super Absorbent Media
*Cellulose with Super Absorbent Media
Micron Rating
10 Micron (nominal)
30 Micron (nominal)
Diameter
3.70"
3.70"
Height
8.60"
8.60"
Mounting Thread
1.375" – 12 UNF
1.375" – 12 UNF
Flow Rate
25 gpm (94.6 lpm)
25 gpm (94.6 lpm)
Flow
1" flow
1" flow
Shell Thickness
0.020
0.020
Gasket Material
Buna N
Buna N
Collapse (Min.)
150 psid (10.3 bar)
150 psid (10.3 bar)
Burst (Min.)
250 psi (17.2 bar)
250 psi (17.2 bar)
Max. Operating Temp.
250°F (139°C)
250°F (139°C)
Designed to remove particulate and sense both free and emulsified water from neat gasoline, diesel, biodiesel, ULSD (Ultra Low Sulfur Diesel), kerosene and fuel oils and slow flow as an indicator of the presence of water in neat gasoline and diesel fuels.
Will not detect phase separation, sense or react to water in ethanol blended gasoline.
Larger filter media captures more particulate to reduce filter changeout intervals.
Particulate Removing Filters with Drain Valve
40810P-DV
40830P-DV
Filter Type
Spin-On
Spin-On
Media Type
*Cellulose with Silicone Treated
*Cellulose with Silicone Treated
Micron Rating
10 Micron (nominal)
30 Micron (nominal)
Diameter
3.70"
3.70"
Height
6.87"
6.87"
Mounting Thread
1" – 12 UNF
1" – 12 UNF
Flow Rate
25 gpm (94.6 lpm)
25 gpm (94.6 lpm)
Flow
3/4" flow
3/4" flow
Shell Thickness
0.020
0.020
Gasket Material
Buna N
Buna N
Collapse (Min.)
150 psid (10.3 bar)
150 psid (10.3 bar)
Burst (Min.)
250 psi (17.2 bar)
250 psi (17.2 bar)
Max. Operating Temp.
250°F (139°C)
250°F (139°C)
Designed to remove particulate from neat gasoline, ethanol blended gasolines, diesels, biodiesel, ULSD (Ultra Low Sulfur Diesel), kerosene and fuel oils.
Will not react to water in gasoline or diesel fuel, or respond to phase separation in alcohol blended gasolines by slowing flow.
Comes with petcock drain valve located in the bottom of the filter for convenient drainage of collected water.
40810PA-DV
40830PA-DV
Filter Type
Spin-On
Spin-On
Media Type
*Cellulose with Super Absorbent Media
*Cellulose with Super Absorbent Media
Micron Rating
10 Micron (nominal)
30 Micron (nominal)
Diameter
3.70"
3.70"
Height
6.87"
6.87"
Mounting Thread
1.375" – 12 UNF
1.375" – 12 UNF
Flow Rate
25 gpm (94.6 lpm)
25 gpm (94.6 lpm)
Designed for cost efficient particulate filtration from gasoline, ethanol blended gasolines, diesels, biodiesel, ULSD (Ultra Low Sulfur Diesel), kerosene and fuel oils.
Will not react to water in gasoline or diesel fuel, or respond to phase separation in alcohol blended gasolines by slowing flow.
Comes with petcock drain valve located in the bottom of the filter for convenient drainage of collected water.
